The Asymptotic Geodesic Timber Vault has been assembled at the Design Factory 1:1

Forschung, International |

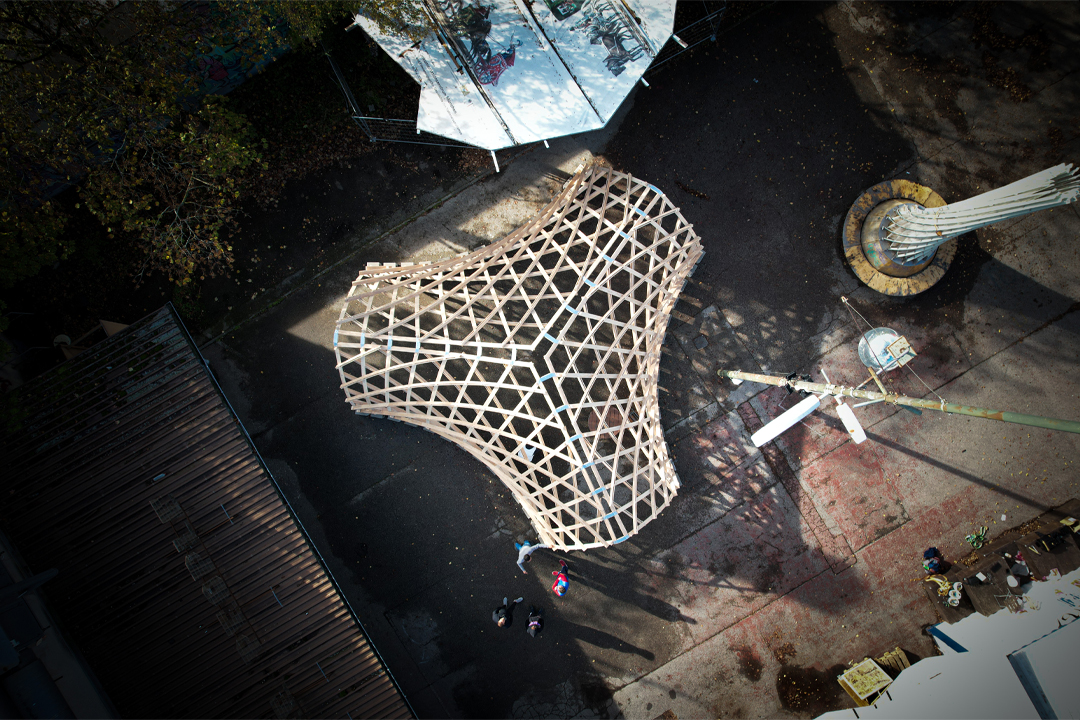

In the fall 2022, the University of Hong Kong collaborated with the Technical University of Munich to design and construct a complex spatial timber structure simply by weaving together regular flat planks of ash wood.

Image: Michael Ethan

This research project combines new methods from applied geometry, computational engineering, and structural design. By designing webs of asymptotic and geodesic curves simple planks of ash wood are woven together in their tall and flat orientation into a lightweight timber structure. This approach offers high structural rigidity, with efficient use of renewable materials. The structure can be assembled flat by low-skilled workers and offers a kinetic deformation into the doubly curved design shape, to create a spatial strained gridshell.

The Vault is assembled from three identical gridshells, which were prefabricated by a group of 20 students in the Design Factory 1:1. Finally, the Tri-hex timber grid is covered with developable polycarbonate panels to ensure constructive wood protection and create a weatherproof shelter for cultural events in the Kreative quarters of Munich.

The project is funded by the Research Grants Council of Hong Kong and was constructed in collaboration with the Technical University of Munich, Professorship of Structural Design.

Text written by Eike Schling. More images and impressions of the Asymptotic Geodesic Timber Vault can be found here. The opening of the pavillion will take place on Tuesday, 29th of November (starting at 5 PM). Further information about the opening can be found here.
